11ac Tri - Band Outdoor Wireless AP 2200Mbps Datarate IP67 Level Enclosure
Outdoor shell with Lightning Protection, Temperature Adaptive
HW-AP2200 with metal IP67 level waterproof, dust proof and sunscreen shell, PCB board support Common mode ±6KV Different mode ±2KV lightning protection, which avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -30℃ to 70℃, Suit for any country and any environment.
High Power design, N connector for external antenna, more range and stable signal

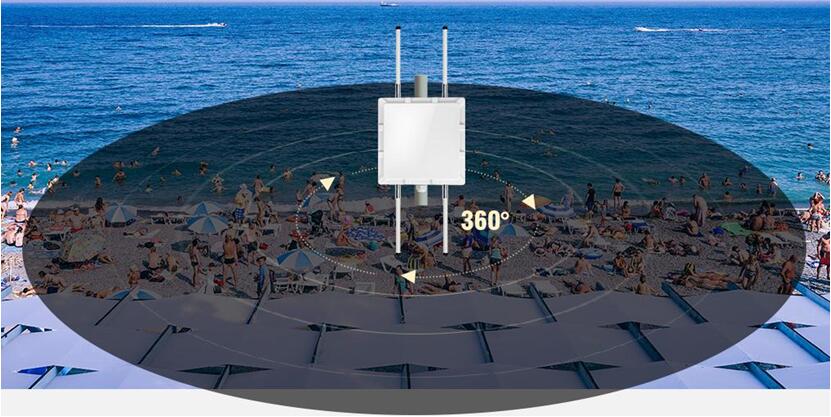

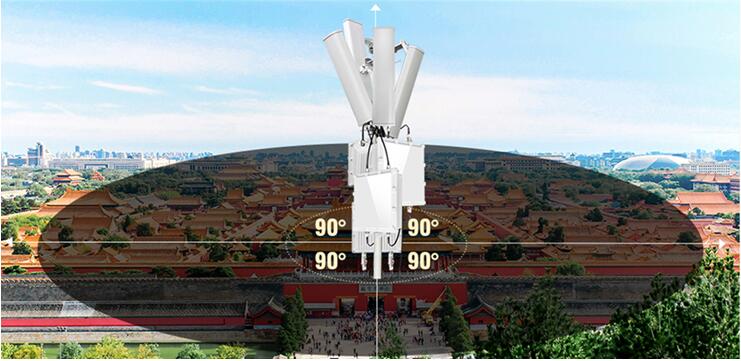

Designed in Power Amplifier on PCB board, the power can be 300mW high power, N type water proof connector,can connect with panel/omni outdoor antenna based on request, greatly increase the Wi-Fi range and supply the stable Wi-Fi signal for users.
Power over Ethernet
HW-AP2200 has integrated IEEE802.3at Power over Ethernet (PoE), for easy installation and lower cost. So it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
MU-MIMO, Wave2.0 Technology
Comply with Wave2.0 Technology, it adopt 256QAM modulation, support MU-MIMO (Multi-User Multiple-Input Multiple-Output), 6 Spatial Steams, greatly to improved the communication efficiency.
Spec:
| Hardware: |
| Chipset | Qualcomm IPQ4019+QCA9886+QCA8075 |
| Standard | 802.11ac/b/g/n, MU-MIMO technology |
| Memory | 512MB DDR3 RAM |
| Flash | 32MB |
| Interface | 1 * 10/100 /1000Mbps RJ45 WAN Port |
| 1 * 10/100 / 1000Mbps RJ45 LAN Port (Inside of shell) |
| 1 * Reset button, press 10 seconds to revert to default setting |
| Antenna | 6 * N type connector, can work with omni/panel antennas |
| Power consumption | 48V PoE<30W |
| Size | |
| RF Data |
| Frequency | 2.4G: 802.11b/g/n: 2.4GHz – 2.484GHz |
| 5GHz:802.11a/n/ac MIMO: 5.150GHz～5.850GHz |
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM, 128-QAM, 256-QAM |
| DSSS = DBPSK, DQPSK, CCK |
| Throughput | 2200Mbps |
| 2.4G RF Power (IPQ4019) | 802.11b | 11M | 23±2dBm | 1M | 25±2dBm |
| 802.11g | 54M | 22±2dBm | 6M | 24±2dBm |
| 802.11n HT20 | MCS7 | 21±2dBm | MCS0 | 23±2dBm |
| 802.11n HT40 | MCS7 | 21±2dBm | MCS0 | 23±2dBm |
| 5G RF Power (IPQ4019) | 802.11a | 54M | 19±2dBm | 6M | 21±2dBm |
| 802.11n HT20 | MCS7 | 18±2dBm | MCS0 | 20±2dBm |
| 802.11n HT40 | MCS7 | 18±2dBm | MCS0 | 20±2dBm |
| 802.11ac HT80 | MCS9 | 17±2dBm | MCS0 | 19±2dBm |
| 5G RF Power (QCA9886) | 802.11a | 54M | 19±2dBm | 6M | 21±2dBm |
| 802.11n HT20 | MCS7 | 18±2dBm | MCS0 | 20±2dBm |
| 802.11n HT40 | MCS7 | 18±2dBm | MCS0 | 20±2dBm |
| 802.11ac HT80 | MCS9 | 17±2dBm | MCS0 | 19±2dBm |
| 2.4G Receive Sensitivity | 802.11b | 11M | -85dBm | 1M | -94dBm |
| 802.11g | 54M | -72dBm | 6M | -90dBm |
| 802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm |
| 802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm |
| 5G Receive Sensitivity | 802.11a | 54M | -72dBm | 6M | -90dBm |
| 802.11n HT20 | MCS7 | -70dBm | MCS0 | -88dBm |
| 802.11n HT40 | MCS7 | -68dBm | MCS0 | -86dBm |
| 802.11ac HT80 | MCS9 | -58dBm | MCS0 | -85dBm |
| EVM | 2.4G EVM: 802.11b: ≤-10 dB; 802.11g: ≤-25 dB; 802.11n: ≤-28dB 5G EVM: 802.11a: ≤-25 dB; 802.11n: ≤-28 dB; 802.11ac: ≤-32 dB |
| PPM | ±20ppm |
| Max Users | 256 |
| Firmware Features: |
| Operation mode | Wireless AP, Gateway, WISP, Wi-Fi Repeater |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP(Dual Access) /PPTP(Dual Access) |
| Wireless Security | 64/128-bit WPA / WPA2(PSK/AES) encryption |
| SSID | Multiple SSID (4 SSID for 2.4G, 8 SSID for 5.8G) |
| Firewall | IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding |
| Protocols | IPv4 |
| Others: |
| Package Contents | 2200Mbps Dual Band wireless access point Ethernet Cable Quick Installation Guide Setting Accessory |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: -20~55 ℃ Limit working temperature: -30~70 ℃ Storage Temperature: -40~70 ℃ Humidity: 5%~95% non-condensing |
| Management | Firmware GUI , Remote Management, WLAN Controller, Cloud Management System |
