Dual-Band AC1200 2.4Ghz+5Ghz Ceiling-Mounted Access Point With QCA9563 CPU - Model XD6900

Brand Name : OEM

Model Number : XD6900

Certification : CE, FCC, ROHS, TUV

Place of Origin : China

MOQ : 100 PCS

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000 PCS/ WEEK

Delivery Time : 4 working days

Packaging Details : Giftbox + Carton box

Material : ABS

Color : White

Chipset : QCA9563

Flash : 16M

RAM : 128M

Band : 2.4G + 5.8G

Power : 1000mW

LED : Yes

Contact Now

Dual Band 1200Mbps High Power WiFi AP 802.11ac Wireless Access Point

XD6900 is an Qualcomm Chipset high power industrial Ceiling Wireless Access Point with the next generation 802.11ac Wi-Fi standard, combined 1200Mbps Wi-Fi speed over 2.4GHz(300Mbps) and 5GHz(900Mbps), equipped Gigabit WAN & LAN port, fast Ethernet data rate make more than 100 end users can access into XD6900 to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks, widely be used in school, hospital, hotel, office, shipping mall...

Main Features:

Comply with IEEE 802.11ac/b/g/n, dual band, 1200Mbps Data Rate
1 10/100/1000Mbps WAN Port, 1 10/100/1000Mbps LAN Port, faster Ethernet.
1000mW high power, build in 5dBi MIMO antenna, stronger signal strength, more wireless coverage, 16M Flash, 128M DDR2 RAM, more user, more stable
Support active IEEE 802.3at 48V PoE standard
Support SSID broadcasting, Muiti SSID up to 8 (4 SSID in 2.4GHz, 4 SSID in 5GHz)
Support Gateway (PPPOE, static IP, dynamic IP) , Wireless AP, Repeater, WISP operation mode
With function of build in firewall, IP filter, URL filter and MAC filter
Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment
Support DDNS, VPN pass through, Port forwarding and DMZ host
Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security

SPECIFICATION

Wireless
Standard	802.11ac/b/g/n, MIMO technology
Speed	900Mbps compatible with 5.8GHz 300Mbps b/g/n for 2.4GHz
Modulation	OFDM = BPSK,QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK
Channel	Ch.1-13 for 2.4GHz Ch.36-165 for 5.8GHz
Frequency band	2.412Ghz-2.472 for 2.4GHz 5.180Ghz-5.825Ghz for 5.8GHz

Hareware
Chipset	Atheros QCA9563 + QCA9882 +QCA8334
Memory	128MB DDR2 RAM
Flash	16MB
Interface	1 * 10/100 /1000Mbps RJ45 WAN Port 1 * 10/100 / 1000Mbps RJ45 LAN Port 1 * Reset button, press 15 seconds to revert to default setting
Antenna	Build in 5dBi MIMO Antenna
Power consumption	30W(Full Load)

Software
Standard Version	Bandwidth: 20Mhz, 20/40Mhz, 80Mhz
Operation Mode	Gateway, Wireless AP, Repeater, WISP
SSID No	4 SSID for 2.4G, 4SSID for 5.8G
Factory Default Setting	Yes
Centralized Management by software	Yes
Firewall	DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding
Protocols	IPv4

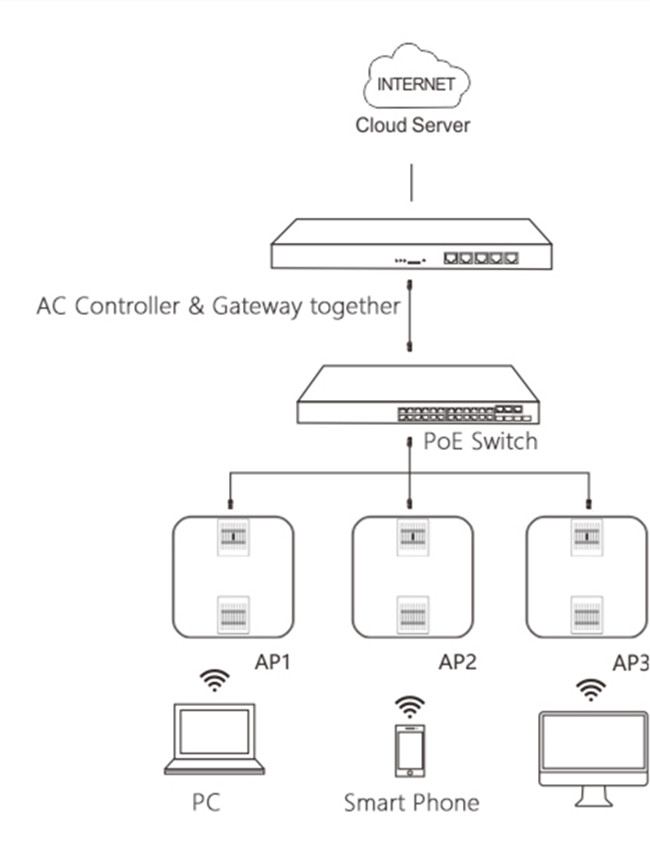

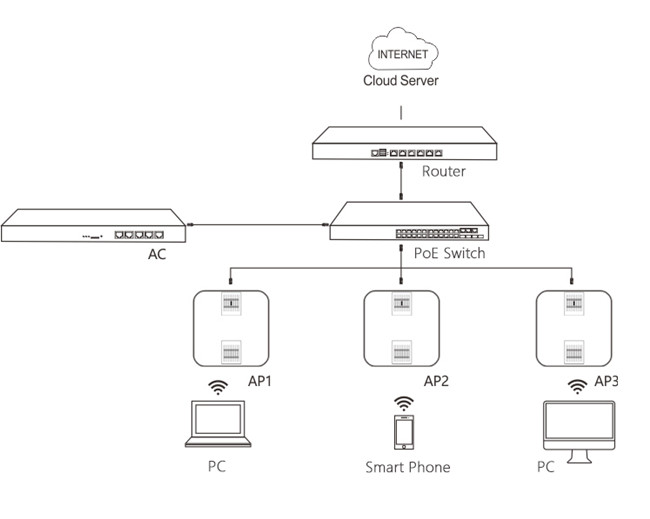

Working Diagram:

Dual-Band AC1200 2.4Ghz+5Ghz Ceiling-Mounted Access Point With QCA9563 CPU - Model XD6900
